 Details

1, Name: WC67K CNC Press Brake

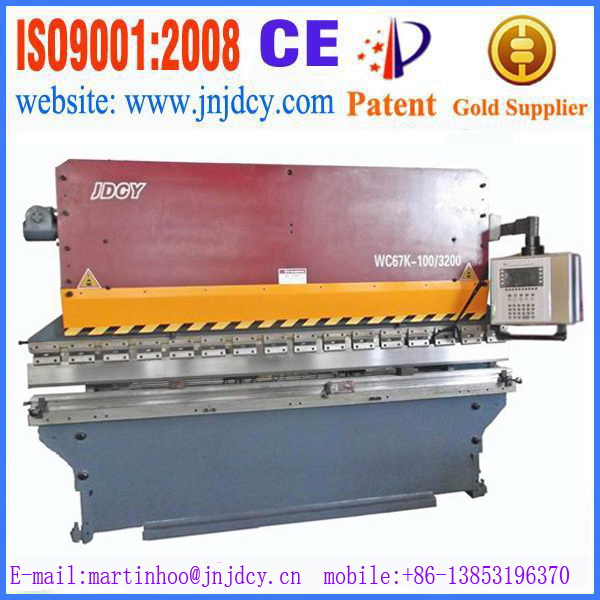

2,Picture and our power(certificate)


Our WC67K CNC press brake has passed ISO9001-2008, CE certificate, and the machine also passed Chinese government exporting quality assurance quality certificate. 4 years gold supplier in alibaba website.

3, Video link:


4, Instruction:
CNC press brake is also called CNC bending machine, metal steel bending machine. Which is mainly used for processing steel sheet bending.

5, Main Characteristics:
1), it is complete steel welded structure with high strength and good rigidity.Machine frame is processed by annealing treatment.
2), Hydraulic top-transmission method can assure the machine stable and reliable.
3), Mechanical forced synchronization makes it with strong capacity of unbalancing loading resistance.
4), Precision of bending is high.
5), Angle of bending and size of back gauge is controlled by CNC system. We adopt CNC programming method, so it is operated easily and price is cheap.
6), Back gauge adopts ball screw and high precision linear guide.

6, Technical Parameters:

Model	Nominal pressure (KN)	Worktable  length  (mm)	Poles  Distance (mm)	Throat depth (mm)	Slider travel (mm)	Open  height (mm)	Main motor (KW)	Machine weight (kg)	Machine size L×W×H (mm)
WC67K-30T/1600	300	1600	1280	200	70	220	3	1800	1600x800x1620
WC67K-30T/2000	300	2000	1600	200	80	240	3	3000	2000x780x1700
WC67K-40T/2200	400	2200	1850	250	100	320	4	4200	2260x1200x1900
WC67K-40T/2500	400	2500	1850	250	100	320	4	3600	2560x1200x1900
WC67K-50T/2500	500	2500	1850	250	100	320	4	3800	2560x1200x1900
WC67K-63T/2500	630	2500	1900	250	120	320	5.5	4900	2560x1340x2200
WC67K-63T/3200	630	3200	2560	250	120	320	5.5	5200	3260x1340x2200
WC67K-80T/2500	800	2500	1990	320	120	320	7.5	6200	2560x1400x2300
WC67K-80T/3200	800	3200	2560	320	120	350	7.5	6500	3260x1400x2300
WC67K-80T/4000	800	4000	3000	320	120	350	7.5	6800	4060x1400x2300
WC67K-100T/2500	1000	2500	2020	320	130	370	7.5	8000	2560x1480x2450
WC67K-100T/3200	1000	3200	2600	320	130	370	7.5	8500	3260x1480x2450
WC67K-100T/4000	1000	4000	3000	320	130	370	7.5	9000	4060x1480x2450
WC67K-125T/3200	1250	3200	2500	320	130	370	11	9800	3260x1520x2550
WC67K-125T/4000	1250	4000	3000	320	130	370	11	105000	4060x1520x2550
WC67K-160T/3200	1600	3200	2600	320	150	460	11	13800	3260x1600x2800
WC67K-160T/4000	1600	4000	3000	320	150	460	11	14400	4060x1600x2800
WC67K-160T/5000	1600	5000	4000	320	150	460	11	14800	5060x1700x2900
WC67K-160T/6000	1600	6000	5000	320	150	460	11	15600	6060x1700x3000
WC67K-200T/3200	2000	3200	2500	400	200	460	15	16500	3260x1600x2800
WC67K-200T/4000	2000	4000	3000	400	200	460	15	17800	4060x1600x2800
WC67K-200T/5000	2000	5000	4000	400	200	460	15	19600	5060x1700x2900
WC67K-200T/6000	2000	6000	5000	400	200	460	15	21800	6060x1700x3000
WC67K-250T/3200	2500	3200	2500	400	200	590	18.5	18800	3260x1600x2800
WC67K-250T/4000	2500	4000	3000	400	200	590	18.5	19500	4060x1700x3000
WC67K-250T/5000	2500	5000	4000	400	200	590	18.5	21800	5060x1700x3100
WC67K-250T/6000	2500	6000	5000	400	200	590	18.5	22700	6060x1800x3200
WC67K-300T/3200	3000	3200	2500	400	250	590	22	22000	3260x1900x3000
WC67K-300T/4000	3000	4000	3000	400	250	590	22	24000	4060x2000x3000
WC67K-300T/5000	3000	5000	4000	400	250	590	22	27000	5060x2000x3100
WC67K-300T/6000	3000	6000	5000	400	250	590	22	29500	6060x2100x3200
WC67K-400T/4000	4000	4000	3000	400	250	590	30	27500	4060x2000x3100
WC67K-400T/5000	4000	5000	4000	400	250	590	30	31000	5060x2000x3200
WC67K-400T/6000	4000	6000	5000	400	250	590	30	34200	6060x2100x3300
WC67K-500T/4000	5000	4000	3000	400	250	590	37	37000	4060x2300x3500
WC67K-500T/5000	5000	5000	4000	400	250	590	37	38000	5060x2300x3500
WC67K-500T/6000	5000	6000	5000	400	320	590	37	41500	6060x2300x3600
WC67K-600T/4000	6000	4000	3000	400	320	590	45	39000	4060x2400x3600
WC67K-600T/5000	6000	5000	4000	400	250	590	37	43500	5060x2400x3600
WC67K-600T/6000	6000	6000	5000	400	320	590	45	47000	6060x2500x3700
WC67K-800T/6000	8000	6000	5000	400	320	650	45	68000	6200x2600x4300

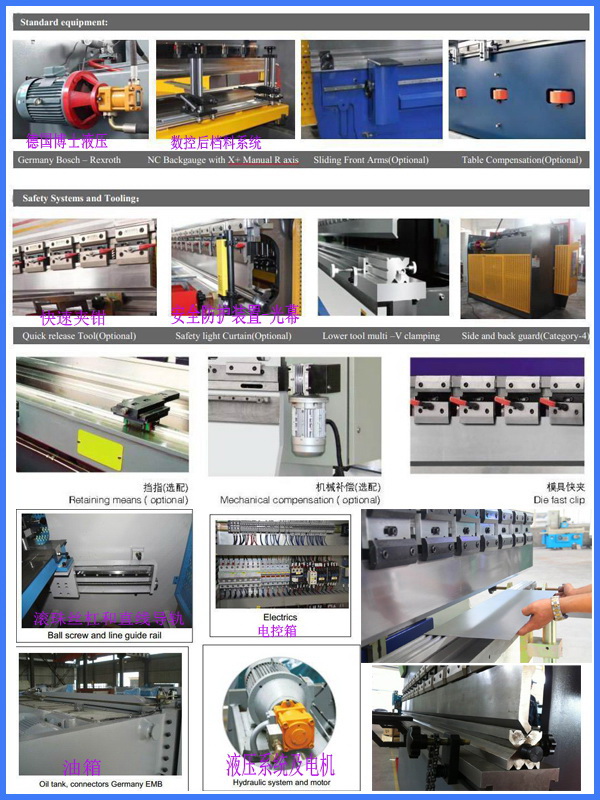

7, Accessories list or configuration:
7-1 configuration

CNC control system	Mitsubishi of Japan	TASK84 of Italy
Driving	AC servo motor(Panasonic of Japan)	AC servo motor(Panasonic of Japan)
Guide screw	Ball screw(PMI of Taiwan)	Ball screw(PMI of Taiwan)
Guide	High precision guide(domestic)	Straight line guide(PMI of Taiwan), 30T High precision guide(domestic)
Gauge device	CNC back gauge device	CNC back gauge device
Hydraulic system	Taiwan	Taiwan


7-2 accessories

No.	Name	Specification or model	quantity	remark
1	CNC press brake		1 set
2	Operation instruction		1 book
3	Packing list		1 sheet
4	Quality certificate		1 sheet
5	Foot-touch switch	subassembly	1 pc
6	Grease gun	HS87-4Q	1 pc
7	Sealing ring		1 bag
8	Door locked key		1 set
9	Switch key		1 set
10	inner hexagon square spanner		1 set

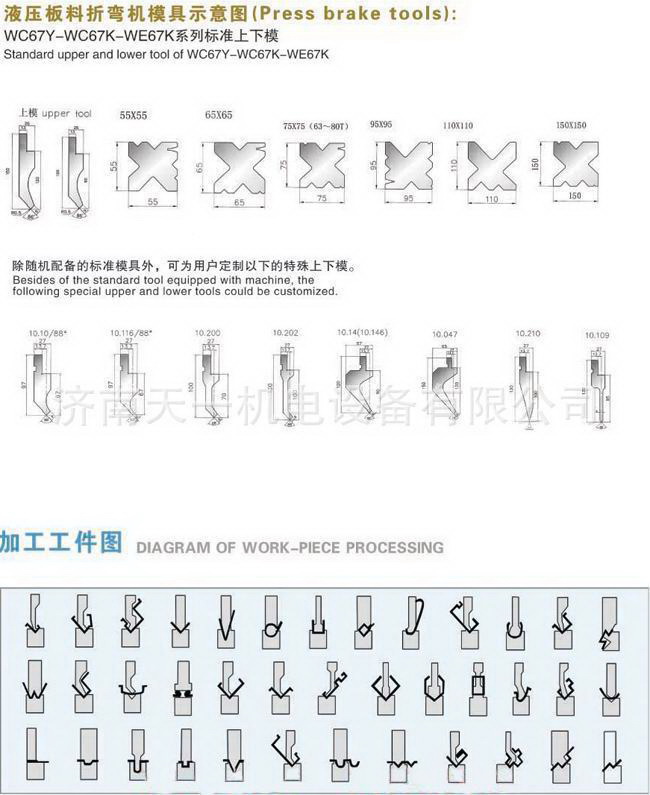

11	Top and bottom bending mold		1 set	Installed in machine
12	Front material supporting shelf		2 pc
13	Back gauge		2 pc
14	Hanging ring		2 pc


8, Technical index:

X axis resolution	±0.1	±0.1
Y axis resolution	±0.02	±0.02
Max speed of X axis location (m/min)	10	10
Max stroke of X (mm)	550(100T above 750)	550(100T above 750)
Slide block location accuracy (mm)	±0.02	±0.02


9, Price and payment term:
9-1 price:
Contact with me forwardly, there is discount price for you!

9-2 payment term: (ESCROW payment is safer and convenient for you)
30% deposit and the balance paid against the copy of B/L in 5 days by T/T

10, Delivery time:
30 days after received the 30% deposit by T/T.
